CLAMS

A Cluster Ambiguity Measure for Estimating Perceptual Variability in Visual Clustering

Hyeon Jeon, Ghulam Jilani Quadri, Hyunwook Lee, Paul Rosen, Danielle Albers Szafir, and Jinwook Seo / 2023

PARTICIPANTS

Hyeon Jeon, Seoul Nationl University
Ghulam Jilani Quadri, University of North Carolina, Chapel Hill
Hyunwook Lee, UNIST
Paul Rosen, University of Utah
Danielle Albers Szafir, University of North Carolina, Chapel Hill
Jinwook Seo, Seoul National University

ABSTRACT

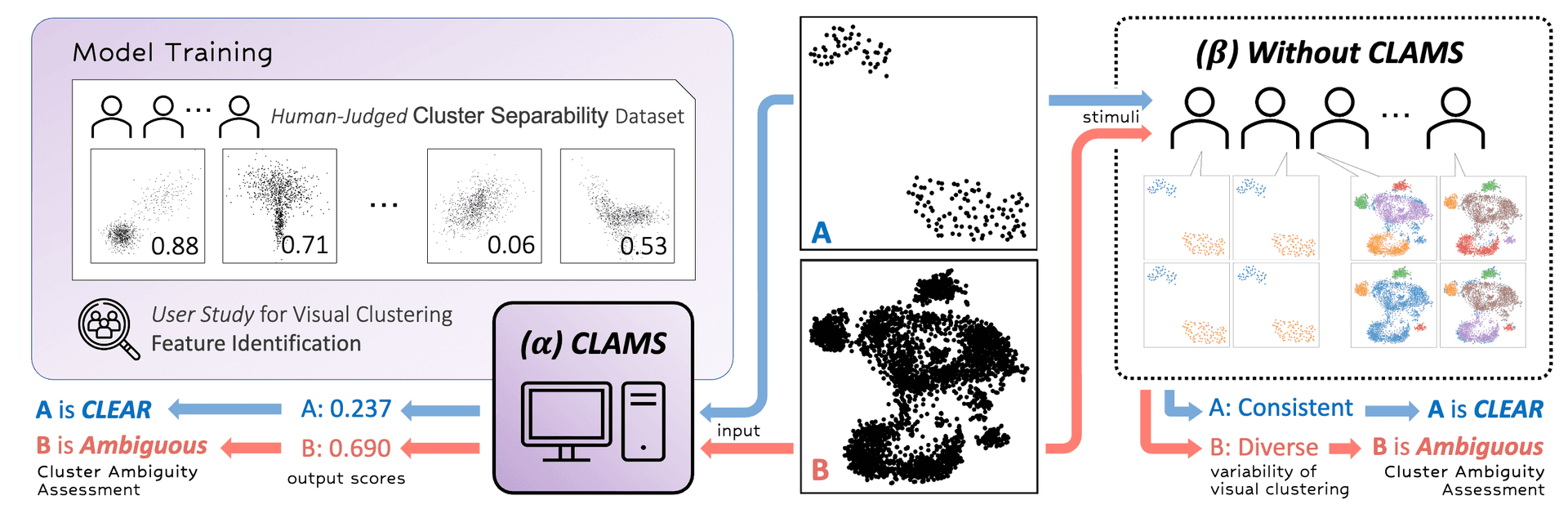

Visual clustering is a common perceptual task in scatterplots that supports diverse analytics tasks (e.g., cluster identification). However, even with the same scatterplot, the way of perceiving clusters (i.e., conducting visual clustering) can differ due to the differences among individuals. Though such perceptual variability casts doubt on the reliability of data analysis based on visual clustering, we lack a systematic way to efficiently assess the variability. In this research, we study the perceptual variability in conducting visual clustering, which we call Cluster Ambiguity. To this end, we introduce CLAMS, a data-driven visual quality measure for automatically predicting cluster ambiguity in monochrome scatterplots. We first conduct a qualitative study to identify key factors that affect the visual separation of clusters (e.g., proximity or size difference between clusters). Based on study findings, we deploy a regression module that estimates
the human-judged separability of two clusters. Then, CLAMS predicts cluster ambiguity by analyzing the aggregated results of all pairwise separability between clusters that are generated by the module. CLAMS outperforms the widely used clustering techniques in predicting the ground truth cluster ambiguity. Meanwhile, CLAMS exhibits performance on par with human annotators. We conclude our work by presenting two applications for optimizing and benchmarking data mining techniques using CLAMS.

Supplemental Materials

SOURCE CODES

25-seconds video

Publications

Hyeon Jeon, Ghulam Jilani Quadri, Hyunwook Lee, Paul Rosen, Danielle Albers Szafir, and Jinwook Seo, "CLAMS: A Cluster Ambiguity Measure for Estimating Perceptual Variability in Visual Clustering", [PDF], IEEE Transactions on Visualization and Computer Graphics (TVCG) (Proc. IEEE VIS 2023)
